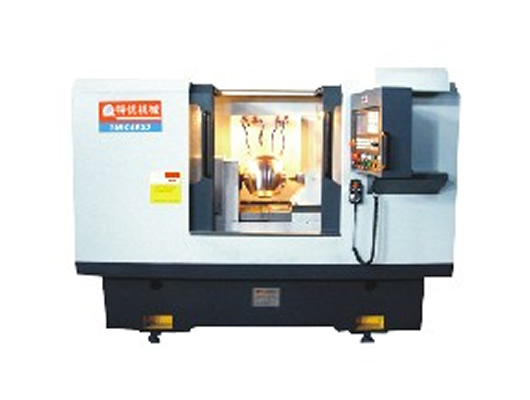

CNC ball machine - CNC Ball Grinding Machine - Ball Grinding Machine - Ball Grinding
Message If you want any further detail data and drawing,please contact us.
1, The ball grinding machine is design by Senior Engineer (formerly the Shanghai Institute of senior engineer Grinder) in our company, it has high-quality, beautiful appearance. After a long-term practical application client machine, according to continuous innovation and improvement of customer feedback, are also creating a stable performance of the modern ball grinding equipment is indispensable for the valve manufacturing high-precision processing equipment.
2, ball grinding machine casting artificial aging, and vibrating through a combination of aging treatment and stable performance.
3, ball grinding machine with a hard track rail design, by the super-audio quenching treatment and Italy FAVRETTO (hair trying to) the company's rail grinding machine CNC processed, high precision, good wear resistance.
4, ball grinding machine with CNC control, high degree of automation can reduce labor intensity and improve product quality for customers, improve production efficiency.
5, ball grinding machine to grinding ball materials: carbon steel, stainless steel and tungsten carbide coatings.
6, ball grinding machine specifications and parameters:
2, ball grinding machine casting artificial aging, and vibrating through a combination of aging treatment and stable performance.
3, ball grinding machine with a hard track rail design, by the super-audio quenching treatment and Italy FAVRETTO (hair trying to) the company's rail grinding machine CNC processed, high precision, good wear resistance.
4, ball grinding machine with CNC control, high degree of automation can reduce labor intensity and improve product quality for customers, improve production efficiency.
5, ball grinding machine to grinding ball materials: carbon steel, stainless steel and tungsten carbide coatings.
6, ball grinding machine specifications and parameters:
|
3MK46 series CNC Ball Grinding Machine
|
||||
|
name
|
Unit
|
Specification
|
||
|
3MK4632
Price:
|
3MK4680
Price:
|
3MK46108
Price:
|
||
|
Grand ball MAX diameter(outside）
|
mm
|
φ120-φ320
|
φ380-φ800
|
φ580-φ1060
|
|
Grand ball bore diameter（≈）
|
inch
|
4＂-8＂
|
10＂-20＂
|
16＂-28＂
|
|
High from the bed face to the centre
|
mm
|
180
|
420
|
550
|
|
MAX load of the worktable
|
kg
|
300
|
1000
|
1500
|
|
Power of grinding wheel motor
|
kw
|
7.5
|
22
|
30
|
|
Speed of main shaft
|
Rpm
|
1500-4000
|
1000-2000
|
700-1300
|
|
Lathe-Hadd motor power
|
kw
|
0.75
|
2.2
|
4
|
|
Speed of Lathe-Hadd main shaft
|
Rpm
|
5-30
|
5-20
|
5-10
|
|
X/Z travel route
|
mm
|
230/200
|
350/300
|
400/400
|
|
End transfer route
|
mm
|
200
|
500
|
600
|
|
End thimble extend route
|
mm
|
75
|
100
|
100
|
|
Thimble
|
|
MOHS-5
|
MOHS-6
|
MOHS-6
|
|
X/Z precise position
|
mm
|
|
±0.005
|
|
|
Z/Z precise position resetting
|
mm
|
|
0.005
|
|
|
Ball roughness concentration
|
Ra
|
|
≤0.4
|
|
|
Outside size （long×wide×high）
|
cm
|
260×190×180
|
300×260×230
|
400×310×380
|
|
Net weight
|
kg
|
5000
|
10000
|
16000
|
