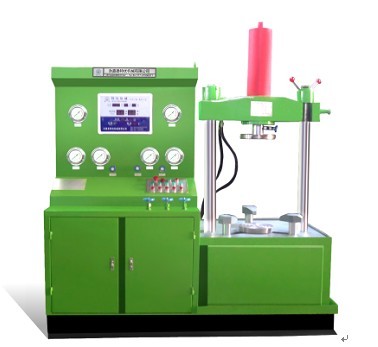

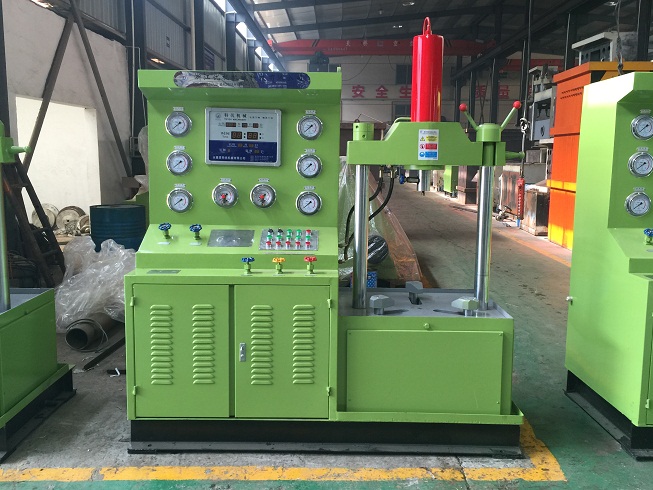

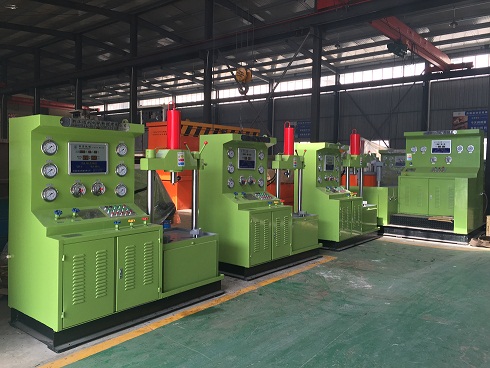

JLT vertical valve hydraulic test bed,test bench
Message If you want any further detail data and drawing,please contact us.
1.JLT-valve test bench(Valve testing equipment) Technical performance and feature
● It's suitable for the pressure performance test of the flange type, welding type, internal and external thread type valves
., fully meet the GB/T 13927-2008, JB/T 9092-99, the API 598 requirements.
● It has the grip pressure hold and top press clamp type operation. The upper square horizontal frame can push to
turn rear 90° function, with the simple operation and use.
● The system equips with the high and low pressure water pump device to be used for the test medium circulation storage.
● The pressure trial medium is water, air and kerosene that can be selected freely by users.
● During the course of presseure protection of water or air test, any button can not work under the condition of which
the tested valve cavity has high pressure, it can work nornmally until leaking the pressure to
nopressure (make sure safety while working).
● The test bench is equipped with an automatic oil pressure discharge system. As it is used, a high pressure condition
and pressure discharge condition can be changed over to effectively reduce the oil temperature, elongate life
of the test bench and save energy.
● It sets the pressure trial safe protective device.
● It can match with computer detection data management system.

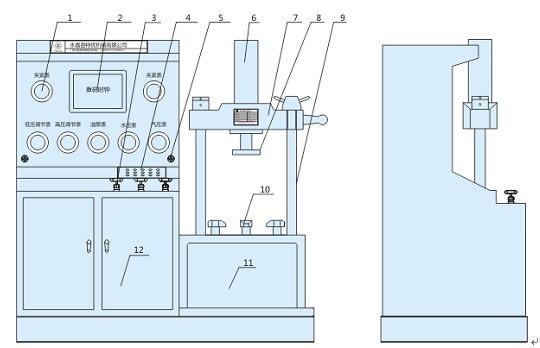

2.JLT type vertical hydraulic valve test bench (outline schematic figure)
1. Pressure gauge 2. Numeral clock 3. Moisture control valve 4. Button control board
5. Pressure gauge valve 6. Pressing cylinder 7. Mobile beam 8. Airproof dish
9. Top pressure pulling rod 10. Clamping claw 11. Circulation water tank 12. discretion pressure water pump ark
3

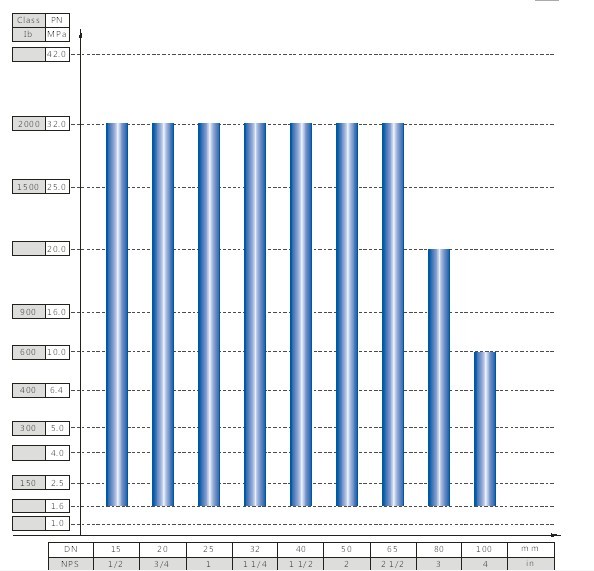

3.1The test range of valve nominal diameter and nominal pressure for JLT-100 model
.jpg)

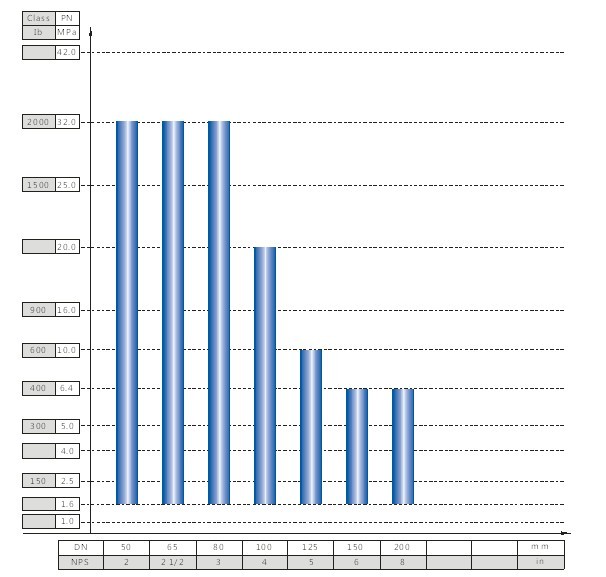

3.2The test range of valve nominal diameter and nominal pressure for JLT-200 model
.jpg)

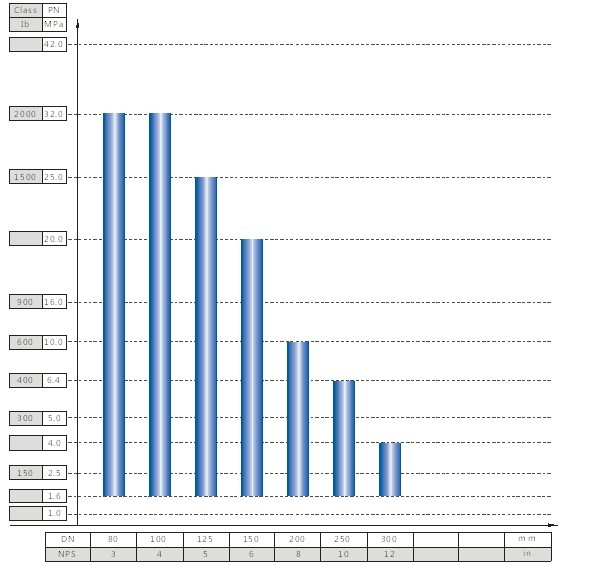

3.3The test range of valve nominal diameter and nominal pressure for JLT-300 model
.jpg)
4.100 type clamping cylinder pressure contrast table
| Nominal diameter DN |
Nominal pressure of valve MPa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | 2000 | |||||||||||||
| Hydraulic system pressure (Pressure increasing) | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 1/2 | 15 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| 3/4 | 20 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 3.0 | 4.0 |
| 1 | 25 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.0 | 6.5 | 5.0 | 6.5. |
| 11/4 | 32 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.0 | 7.5 | 6.0 | 9.0 | 6.0 | 9.0 |
| 11/2 | 40 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | 8.0 | 7.0 | 10.5 | 8.5 | 13.0 | 8.5 | 13.0 |
| 2 | 50 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 | 5.0 | 7.5 | 7.5 | 11.0 | 9.5 | 14.5 | 12.0 | 18.0 | 12.0 | 18.0 |
| 21/2 | 65 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 10.0 | 15.0 | 12.0 | 18.0 | 15.0 | 22.5 | 15.0 | 22.5 |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 10.0 | 15.0 | 15.0 | 22.5 | 19.0 | 27.5 | ||||
| 4 | 100 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 9.0 | 13.5 | 14.0 | 21.0 | ||||||||
200 type clamping cylinder pressure contrast table
| Nominal diameter DN |
Nominal pressure of valve MPa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | 2000 | |||||||||||||
| Hydraulic system pressure (Pressure increasing) | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 2 | 50 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 7.0 | 10.5 | 9.0 | 13.5 |
| 21/2 | 65 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 6.0 | 9.0 | 7.5 | 11.0 | 9.0 | 13.5 | 12.0 | 18.0 |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 8.5 | 9.0 | 13.5 | 12.0 | 18.0 | 15.0 | 21.0 | 18.0 | 27.0 |
| 4 | 100 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 8.5 | 13.0 | 14.0 | 21.0 | 17.0 | 25.5 | ||||
| 5 | 125 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 8.5 | 13.0 | 14.0 | 21.0 | ||||||||
| 6 | 150 | 4.0 | 5.0 | 5.0 | 6.5 | 7.0 | 10.5 | 11.0 | 16.5 | ||||||||||
| 8 | 200 | 5.0 | 6.5 | 7.0 | 10.5 | 11.0 | 17.0 | 18.0 | 27.0 | ||||||||||
300 type clamping cylinder pressure contrast table
| Nominal diameter DN |
Nominal pressure of valve MPa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | ||||||||||||||
| Hydraulic system pressure (Pressure increasing) | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PS | PN | PS | |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.5 | 7.0 | 10.5 | 13.0 | 11.0 | 16.5 | |
| 4 | 100 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | 8.0 | 8.0 | 12.0 | 10.0 | 15.0 | 18.0 | 16.0 | 24.0 | |
| 5 | 125 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.0 | 8.0 | 8.0 | 12.0 | 12.0 | 18.0 | 15.0 | 22.5 | 27.0 | |||
| 6 | 150 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.5 | 10.0 | 10.0 | 15.0 | 16.0 | 24.0 | 20.0 | 30.0 | ||||
| 8 | 200 | 4.0 | 5.0 | 5.0 | 7.0 | 7.0 | 10.5 | 11.0 | 16.5 | 17.0 | 25.5 | ||||||||
| 10 | 250 | 4.0 | 6.5 | 6.5 | 10.0 | 10.0 | 15.0 | 16.0 | 24.0 | ||||||||||
| 12 | 300 | 6.0 | 9.0 | 9.0 | 13.5 | 14.0 | 21.0 | ||||||||||||
