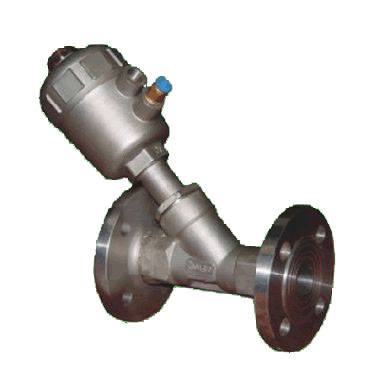

Y4015-50 Pneumatic Actuator Y-Type Control valve (Flange End)

Message If you want any further detail data and drawing,please contact us.

Series :	Y-type Pneumatic Actuator
Name :	Y4015-50 Pneumatic Actuator Y-Type Control valve (Flange End)
Model :	Y4015-50
PDF-DOWNLOAD :	pdf/Y4015-50.pdf
Click :	276

Valve characteristic property may look at the location indicator gas charging an interface but arbitrarily selected location water proofing is the same as above 36 ~C, big flux designs that hermetic sealing probably lengthens the guard against hammer shape guiding and dustproof sealing washer spring replacement normal close , Chang come untied , pair of effects link a form automatically adjusting the bilayer filling: Thread

Material quality form

Name	Material
Body	Stainless steel304、316、316L
Sealing ring	PTFE
Plate	Stainless steel 304、316、316L
Stem	Stainless steel 304、316、316L

Name	Material
cylinder block , cover	Stainless steel 304
fillings connection	Brass
Spring	55CrSi
Stuffing	PTFE

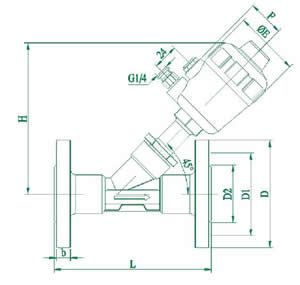

Size data

Hickey	Valve seat inner hole d	External form links a dimension
Hickey	Valve seat inner hole d	L	b	D	D1	D2	E	F	Z-φd	H
G1/2	13	145	14	95	65	45	64	44	4-φ14	137
G3/4	20	155	14	105	75	55	80	44	4-φ14	145
G1	25	165	14	115	85	65	80	52	4-φ14	173
G11/4	32	190	16	135	100	78	80	52	4-φ18	186
G11/2	40	200	16	145	110	85	80	52	4-φ18	189
G2	50	225	16	160	125	100	80	52	4-φ18	205

Give exegesis or explanation: 1. Maximal steam actuating pressure higher than 160 ~C is 1.0 Mpa. 2. Medium flows to being that going down the hole inflow is to carry out implement specification to must enhance, relevance dimension change of being up to.
