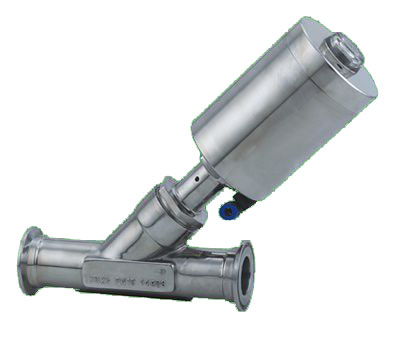

Y-Type Pneumatic Control Valve(Ferrule End)

Y-Type Pneumatic Control Valve(Ferrule End)


Message If you want any further detail data and drawing,please contact us.

Series : Y-type Pneumatic Actuator
Name : Y-Type Pneumatic Control Valve(Ferrule End)
Model : Y5015-50
PDF-DOWNLOAD :
Click : 273
Ø     Valve characteristic

Visual position indicator

Gas control in 36 degrees Celsius can meet more arbitrary position, big flow waterproof hammer double packing hermetic seal design automatically adjust the fractal orientation and extended anti hammer dust seal spring return normally closed, often open, dual role

Connecting forms: clamp


Ø    Material list
Name
Material
body
Stainless steel304、316、316L
Sealing ring
PTFE
disc
Stainless steel304、316、316L
stem
Stainless steel304、316、316L


name
Material
Gas cylinders, cover
Stainless steel304
Packing joints
brass
Spring
55CrSi
packing
PTFE

Ø   Size

Threaded interface In
Seat boresd
Shape connect size
The maximum working pressure(MPa)
Air pressure(MPa)
L
b
D
D1
H
E
F
G1/2
13
132
3
50.5
43-R3
137
64
44
1.6
0.5~0.8
G3/4
20
152
3
50.5
43-R3
145
80
44
G1
25
161
3
50.5
43-R3
173
80
52
G1 1/4
32
181
3
64
57-R3
186
80
52
G1 1/2
40
201
3
64
57-R3
189
80
52
G2
50
232
3
78
70-R3
205
80
52

※1.Above 160 degrees Celsius, the maximum working pressure steam for 1.0 MPa.
  2.the flow direction of medium, for the next hole when actuator specifications must flow increases, the relevant dimensions change.
